Electric: Two 15 kW, 3 Phase electric motors
             - each motor driving a roll.

Rolls are chilled cast iron.
Hardness 480 to 520 HB (Brinell),
fluted to client specifications.
Roll Sizes: 1000mm X 250mm dia
              1000mm x 300mm dia.

Application: Large feedlots.  Ideal for Stockfeed producer. Again used in the Chicken, Pig, Beef & Sheep industries where throughput of 18 to 25 or 30 tons/hour depending on roll diameter used if dry crushing or bruised cereal grain is required.

A top hopper and slide is included in the standard Roller Mill price.

Options: Additional set of spare grooved rolls. Combination Magnabar/Motorised Feed Roll module.  Price on application.

KW1000 Double Mill is two mills stacked one above the other. This configuration will guarantee particle size of the dry crushed grain. This is of high importance in the Chicken and Pig Industry.

The above Roller Mill is not limited to farming applications. They are also suitable for the crushing of spices, rice, coconut fibre and shell, sea shells, carbon, chemicals, salt and numerous other raw materials.

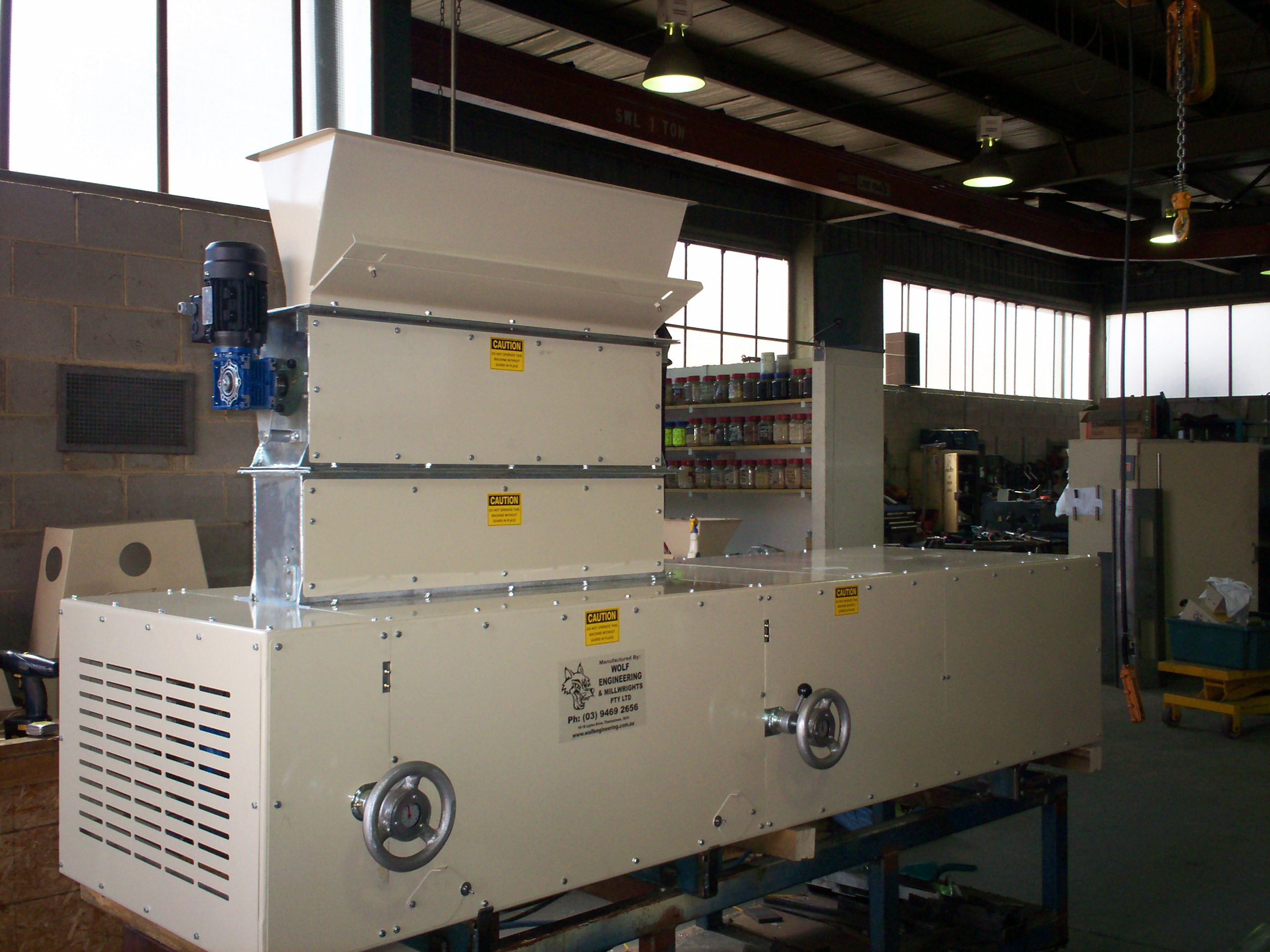

KW 1000
